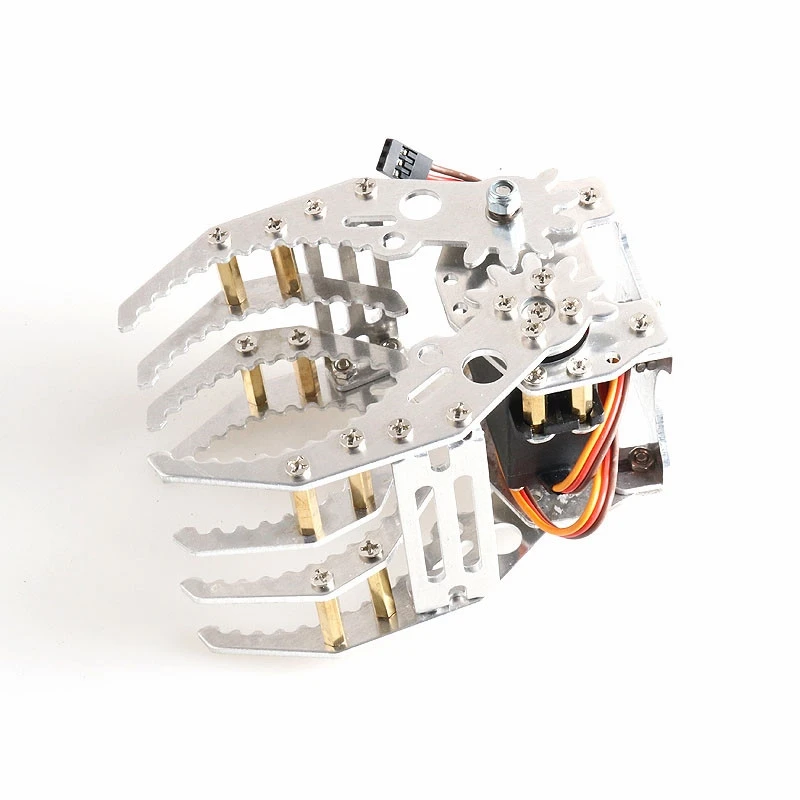

The gripper is fully rigid aluminum build, handsome in appearance and practical, grab oversized, can grab cans and medium-sized balls and other large objects, while the gripper uses both sides of the double tooth structure, this gripper 2 groups tooth on each side of a group, so grab objects more firmly secure gripper is indeed essential grab large objects gripper.
Suitable for standard servos(steering gear), perfect compatible with MG996r/DS3218/DT3316 servo etc.
Claw material: hard aluminum alloy
Claw weight: about 120g (without servo)
Maximum paw angle distance: about 160mm
Overall paw length: about 112mm (the longest overall length when the paw is closed)
Overall paw width: about 60mm (overall width when paw is closed)
Overall paw thickness: about 69mm (thickest overall width when paw is closed)
More details, please visit: https://github.com/SmartArduino/SZDOITWiKi/wiki
MG996R parameters
Connector line: heavy duty, 11.81″ (300 mm)
Colour: Black
Gear: metal gear
Working voltage: 4.8 – 7.2Volts
Stall torque: 12 kg – cm (208.3 oz.) at 6V
Stall torque: 9 kg – cm (180.5 oz.) at 4.8V
Working speed: 0.13sec/60 degrees (6.0V no load)
Working speed: 0.17sec/60 degrees (4.8V no load)
Weight: 55 grams
Product pull: 15kg/cm (6V)
Product size: 40.7mm×19.7mm×42.9mm
Three lines of steering gear connector: orange – signal red – positive brown – negative
DS3218 parameters
-
-
-
without servo
1pcs G8 robot arm claw without servo
with MG996R
1pcs G8 robot arm claw
1pcs MG996R steering gears
with DS3218
1pcs G8 robot arm claw
1pcs DS3218 steering gears
1. Due to computer monitor and the actual shooting brightness and other reasons, there will be a certain color difference.
The final color please refer to our actual goods. Please know this before you buy it. Thank you !
2. The picture we show is 100% Real Object Photography.
3. The size may have 2-3cm differs due to the maunal measurement.
4. For the shipping convenience, the product is unassembled .
