Newest Printhead cleaning tool For HP 70 72 88 91 940 Printhead for hp Z2100 Z5200 Z3200 T610 T1100 T770 T790 T795 K8600 printer

The newest design(not afraid of mixed color):

printer head printhead cleaning kit smart clean kit refill tool,

print Head Maintenance,Refilling ,Cleaning Kits!

For HP Printer head models:

18 70 72 80 83 88 89 90 91 940 941. For HP printer models:



T610/T620/T770/T790/T1100/T1120/T1300/T1200/T2300;



Designjet 5000uv/5500 ps uv/5500uv; Designjet Z2100;

Designjet Z3100ps/Z3100/Z3200; Designjet Z6100



Officejet Pro K550/K550dn/k550dtwn;



K5400/K5400dn/K5400dtn/K5400tn; K8600/K8600dn; L7400/L7480;



L7500/L7550/L7555/L7580/L7590; L7600/L7650/L7680/L7681;



L7700/L7750/L7780; PRO K5300; L7380;



Officejet Pro 8000-A809a/A811a/A809a/A809n;



Pro 8500 – A909b/A909a/A909n/A909g/A910a;

Pro 8500A – A910a/A910g/A910n;



Designjet 1050/1050C plus/1055 cm/1055 cm plus;







Designjet 5500/5500PS/5000;



Features: The maintenance device is mainly for the problem of



air-entering to the print head, vertical and horizontal blank stripe



printing.but it won’t be helped for the problem of chip damage and



electrical faults of the print head!If your HP printer head is cloged,empty or loses ink volume over time, it will no longer print



correctly.Just try to use This smart tool kit to refill with ink into the



printer head , it may Save and Revitalize your print head!







Selling point 1 :Finished one color to another color,not afraid of

mixed color,Arrow can be seen no mixed color.



Selling point 2 : Arrow can be seen :hole only open in the ear side,



so finished one color to another color, not afraid of mixed color



Selling point 3 :Arrow can be seen :Direction can be installed on



both sides, the nozzle cap is installed is very strong ,so finished



one color to another color, not afraid of mixed color





Selling point 4:Funnel the ink nozzle cap for conjoined, fixed well



 head add ink process is as follows :

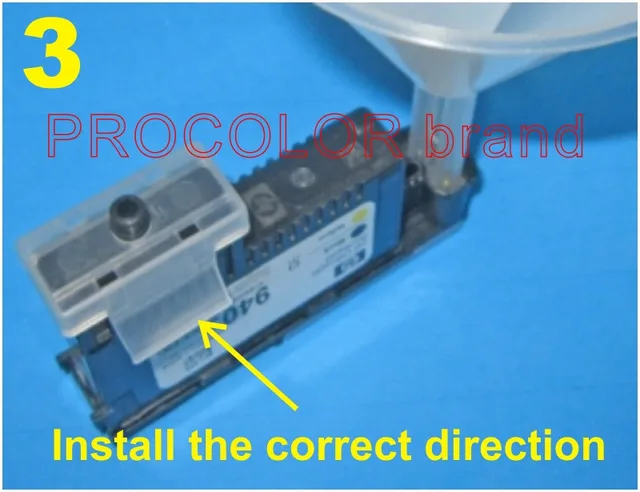

3-4.Install the nozzle cover



5-6. Note the ink before, must see the cartridge on the position of the ink color,go inside the funnel into the yellow ink.

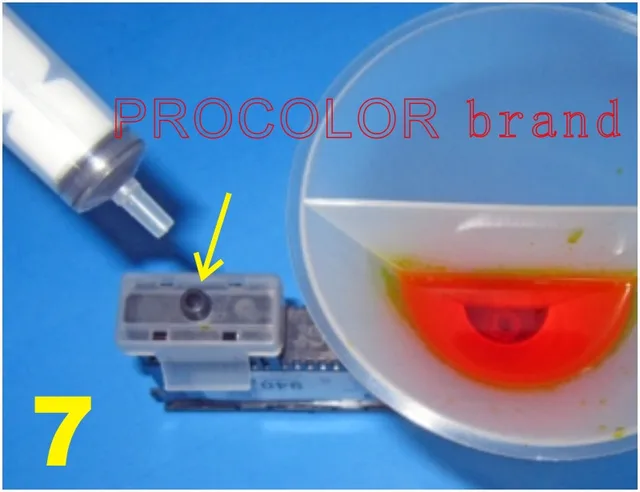

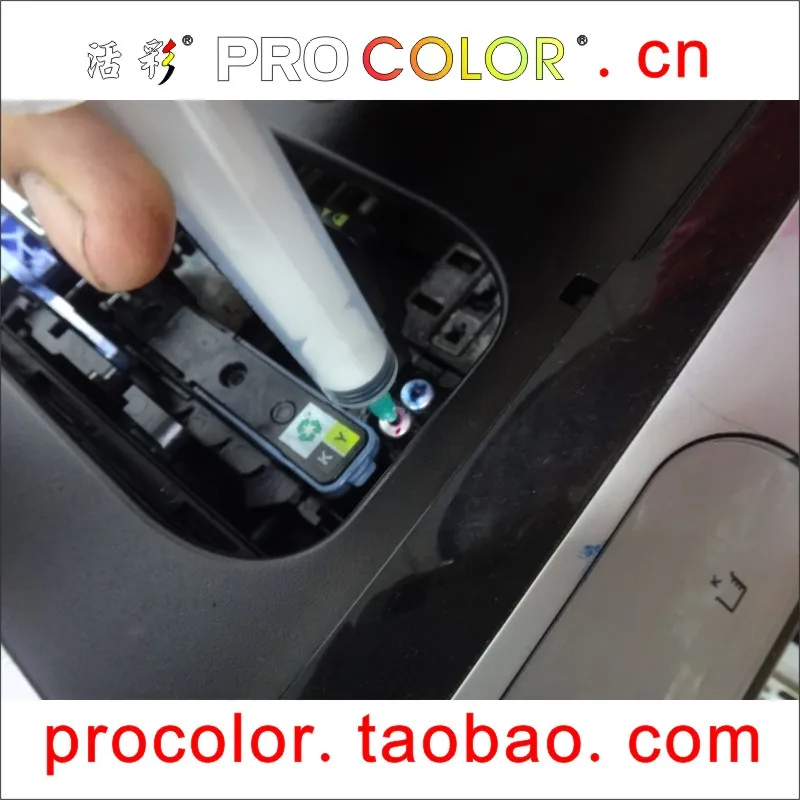

7. Insert the syringe

8. After insert as shown





9-10.Upward, pumping ink out air and a bit of ink, remove the syringe and repeated several times, until the full of yellow ink.

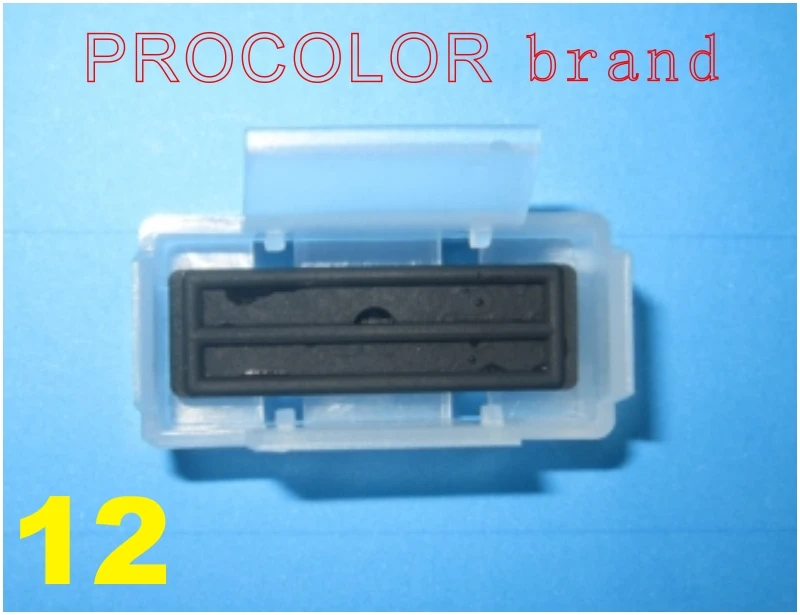

11-12. Pull out the syringe,remove the nozzle cap,rinse clean.

13.The nozzle cap to the other side



14.Repeat 5-10 steps,Into the ink and remove the funnel and nozzle cap, OK.
